Product Overview

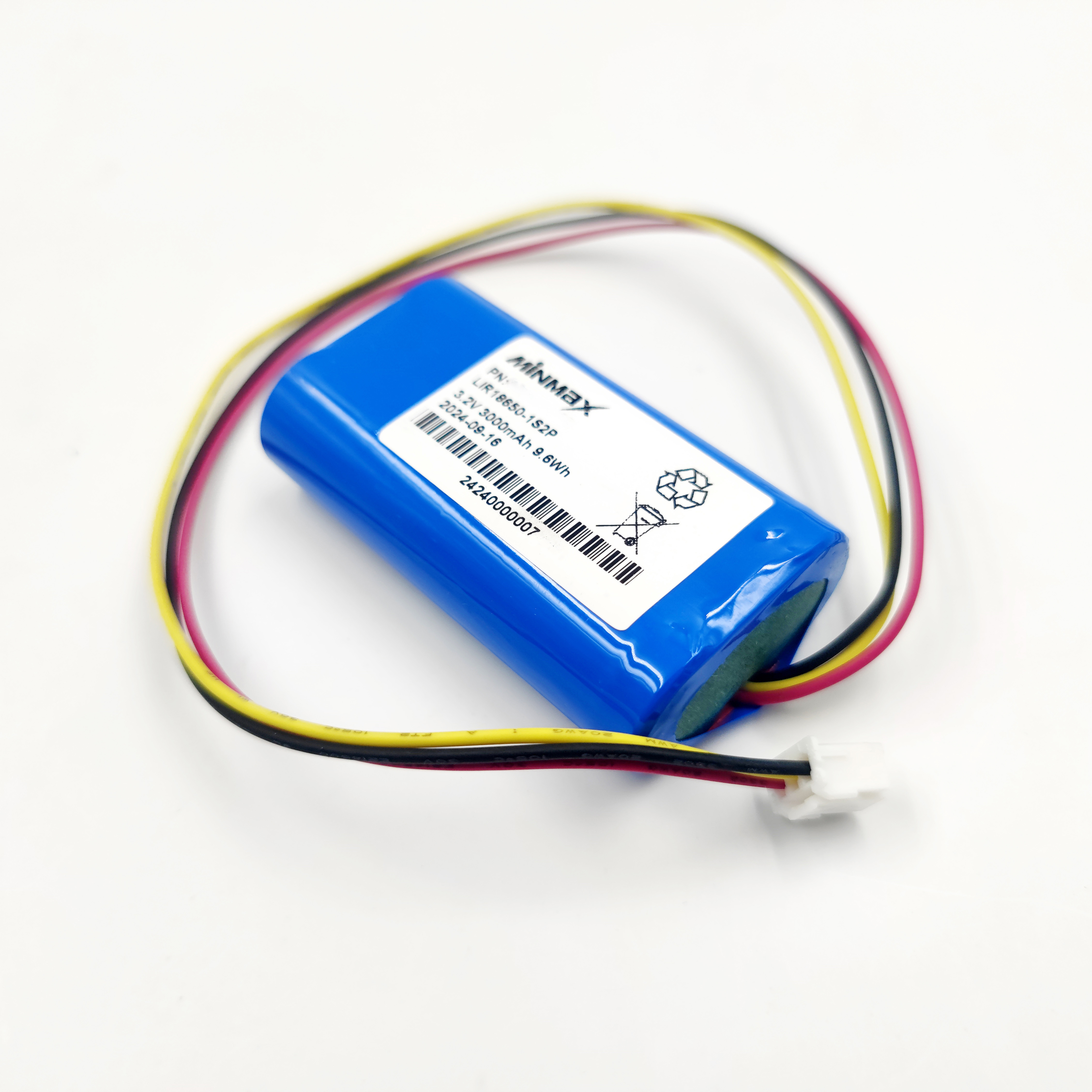

This 3.2V 3000mAh lithium iron phosphate (LiFePO4) battery pack features a 1S2P configuration using IFR18650 cylindrical cells. With superior safety characteristics and 2000+ cycle life.
Key Features
* LiFePO4 Safety Advantage — Non-flammable, no thermal runaway — the safest lithium chemistry available
* 2000+ Cycle Ultra-Long Life — Outlasts standard Li-ion batteries by 4x, reducing total cost of ownership
* IFR18650 1S2P Configuration — Doubled capacity (3000mAh) at 3.2V through parallel cell arrangement
* Flat Discharge Curve — Maintains stable voltage at ~3.2V throughout most of the discharge cycle
* Built-in PCM Protection — Comprehensive safety circuit prevents overcharge, over-discharge, and short circuit
* Green Chemistry — Phosphate-based cathode — environmentally friendly, no cobalt or heavy metals
* Wide Temperature Range — Reliable operation from -20°C to 65°C discharge
Technical Specifications
Nominal Voltage | 3.2V |
Rated Capacity | 3000mAh (9.6Wh) |
Cell Type | LiFePO4 IFR18650 |
Configuration | 1S2P |
Charge Voltage | 3.65V |
Discharge Cut-off | 2.5V |
Max Continuous Discharge | 1C (3000mA) |
Cycle Life | ≥2000 cycles |
Protection Circuit | Overcharge, Over-discharge, Short Circuit |
Charge Temp | 0°C ~ 45°C |
Discharge Temp | -20°C ~ 65°C |
Applications: Solar Garden Lights, IoT Sensor Nodes, Emergency Lighting, LED Flashlights, Portable Power Tools
