Product Overview

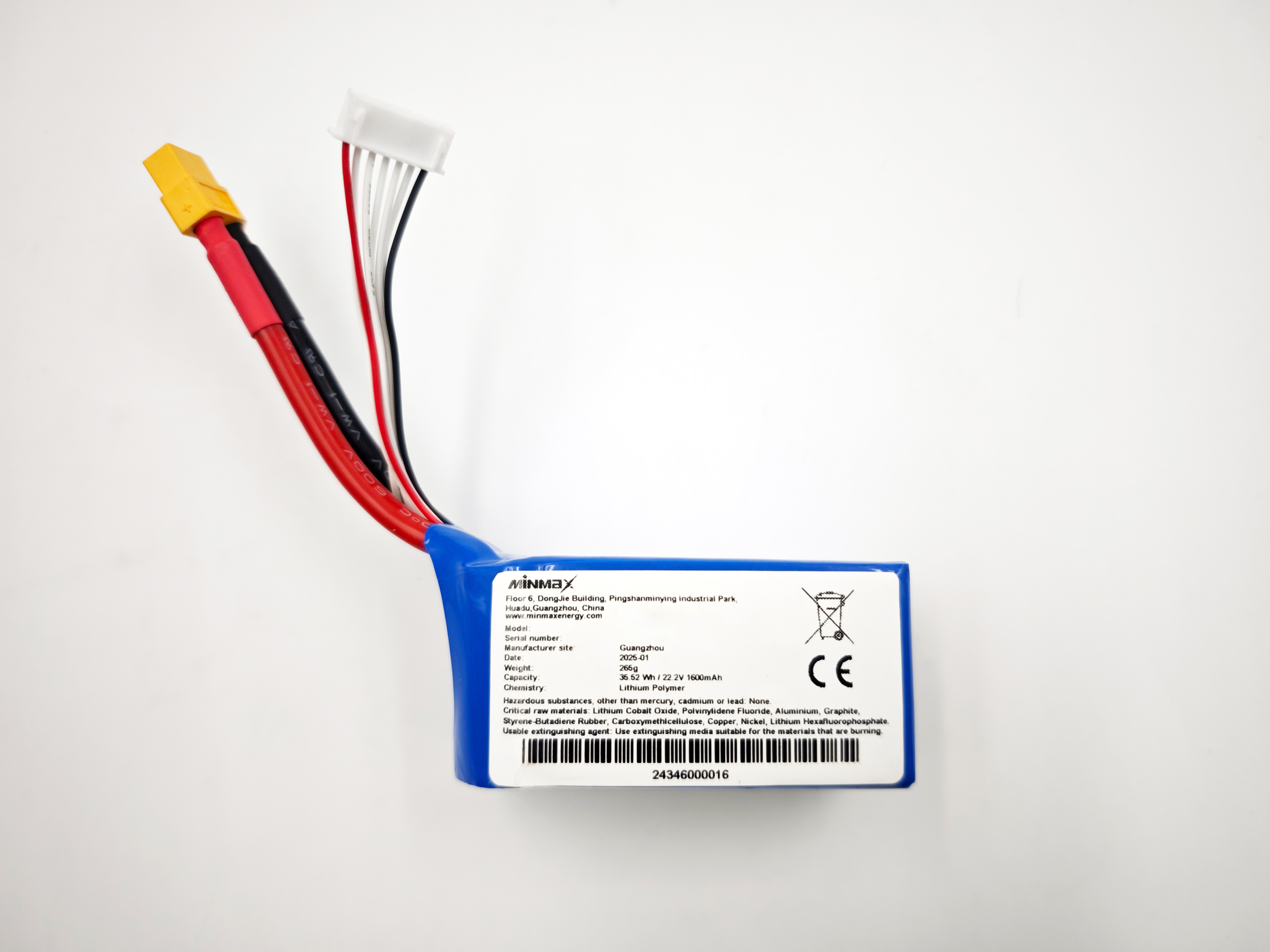

This 22.2V 1600mAh high-voltage lithium polymer battery pack features a 6S1P configuration with premium LP703968 pouch cells. Purpose-engineered for drone and UAV applications.
Key Features
* 6S High Voltage Platform — 22.2V nominal (25.2V full charge) — ideal for medium to large drones and UAV systems
* Ultra-Light Li-Polymer Pouch Cells — LP703968 cells maximize energy-to-weight ratio critical for flight applications
* Stable Discharge Performance — Consistent voltage output throughout the discharge curve for stable flight characteristics
* Compact Form Factor — Slim rectangular design fits standard drone battery compartments
* Smart BMS Protection — Overcharge, over-discharge, and balanced charging protection
* High Energy Density — More flight time per gram compared to equivalent cylindrical cell configurations
* XT60 / EC3 Connector Compatible — Pre-wired for standard drone power connectors
Technical Specifications
Nominal Voltage | 22.2V |
Rated Capacity | 1600mAh (35.52Wh) |
Cell Type | Li-Polymer LP703968 |
Configuration | 6S1P |
Charge Voltage | 25.2V |
Discharge Cut-off | 18.0V |
Max Continuous Discharge | 2C (3200mA) |
Cycle Life | ≥300 cycles |
Protection Circuit | Overcharge, Over-discharge, Cell Balancing, Short Circuit |
Charge Temp | 0°C ~ 45°C |
Discharge Temp | -10°C ~ 60°C |
Applications: FPV Drones, Aerial Photography, RC Aircraft, UAV, Multirotor Platforms
