Product Description

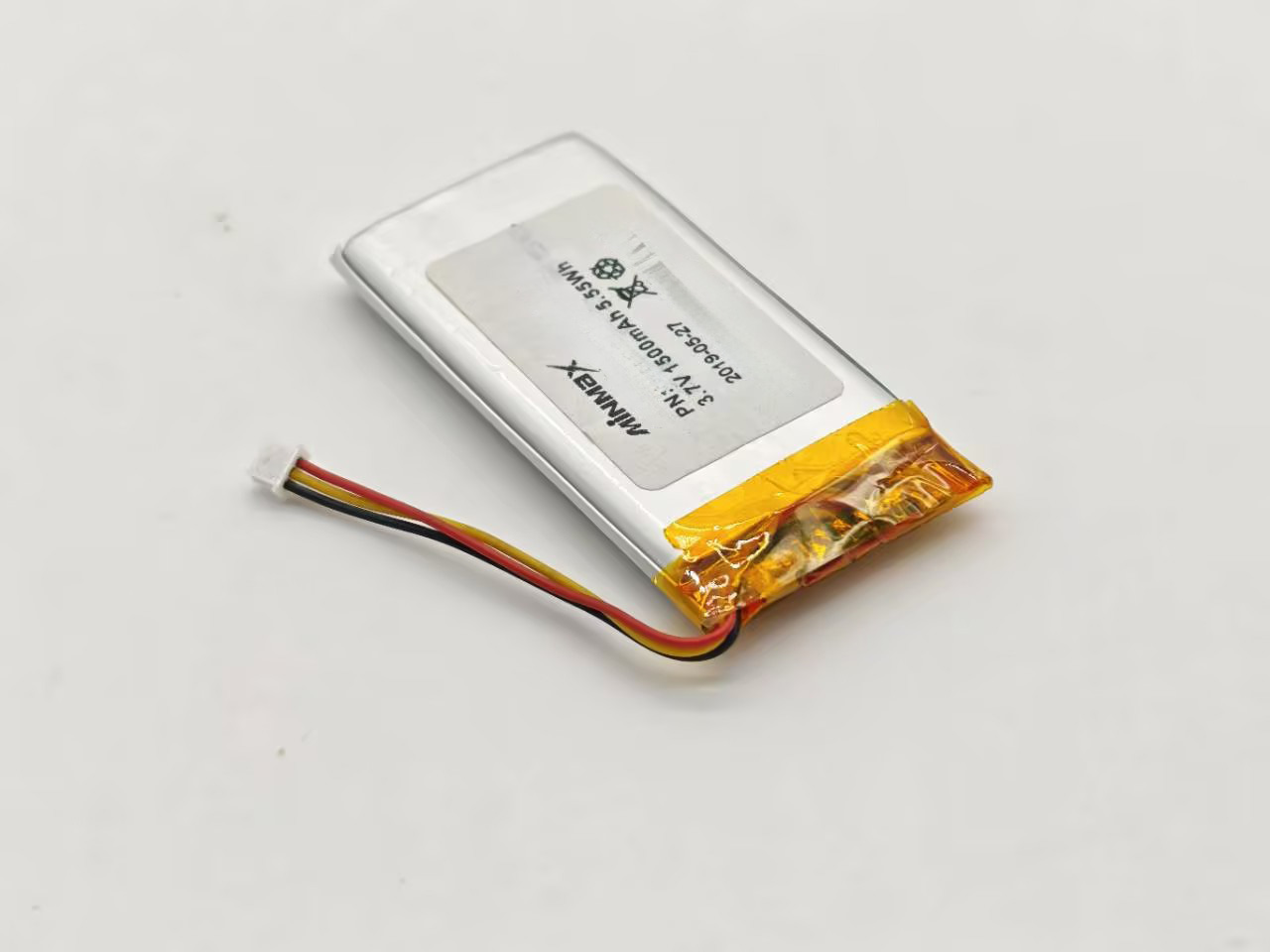

A versatile workhorse battery for the connected home. The LP653465 polymer cell provides 1500mAh (5.55Wh) at 3.7V in a well-proportioned 6.5×34×65mm format that slips easily into remote controls, sensor housings, and compact electronic enclosures. Built-in PCM protection and low self-discharge characteristics make this the go-to power source for devices that need to sit on a shelf for months and still work on first pick-up.
Technical Specifications
Parameter | Specification |
Nominal Voltage | 3.7V DC |
Rated Capacity | 1500mAh / 5.55Wh |
Chemistry | Li-Polymer (Soft Pouch) |
Configuration | 1S1P |
Cell Model | LP653465 |
Cell Dimensions | ~6.5mm × 34mm × 65mm |
Charge Voltage | 4.2V ±0.05V (CC/CV) |
Discharge Cut-off | 3.0V |
Standard Charge | 0.5C (750mA) |
Max Discharge Current | 1C (1500mA) |
Protection | Overcharge / Over-discharge / Overcurrent / Short circuit |
Cycle Life | ≥500 cycles |
Packaging | PVC shrink wrap + PCM |
Output | Lead wires (connector customization available) |
Certifications | UN38.3 / MSDS / CE / RoHS |
