Product Description

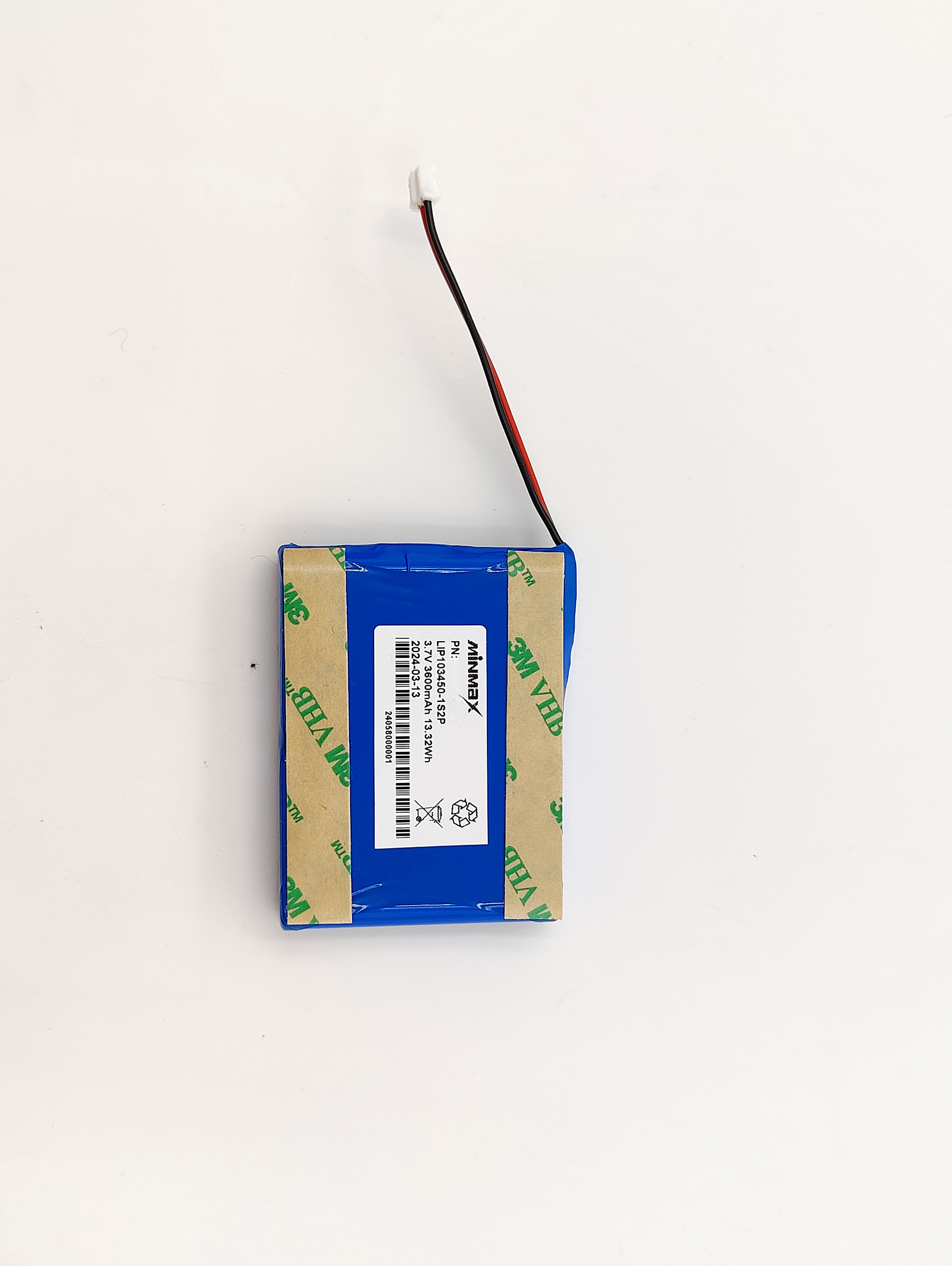

The battery pack delivers 3600mAh (13.3Wh) at 3.7V nominal through a clever 1S2P (1-series, 2-parallel) configuration using two premium LIP103450 polymer pouch cells. By paralleling two 1800mAh cells, this pack halves internal resistance while doubling capacity — providing both longer runtime and better voltage stability under load compared to single-cell solutions. The result is a drop-in power upgrade for devices originally designed around single-cell 3.7V architectures.
Technical Specifications
Parameter | Specification |
Nominal Voltage | 3.7V DC |
Rated Capacity | 3600mAh / 13.3Wh |
Chemistry | Li-Polymer (Soft Pouch) |
Configuration | 1S2P (2 cells parallel) |
Cell Model | LIP103450 |
Charge Voltage | 4.2V ±0.05V (CC/CV) |
Discharge Cut-off | 3.0V |
Standard Charge | 0.5C (1800mA) |
Max Discharge Current | 1C (3600mA) |
Cycle Life | ≥500 cycles |
Protection | Overcharge / Over-discharge / Overcurrent / Short circuit |
Packaging | Blue PVC shrink wrap + PCM |
Output | Lead wires (connector customizable) |
Certifications | UN38.3 / MSDS / CE / RoHS |
