Product Description

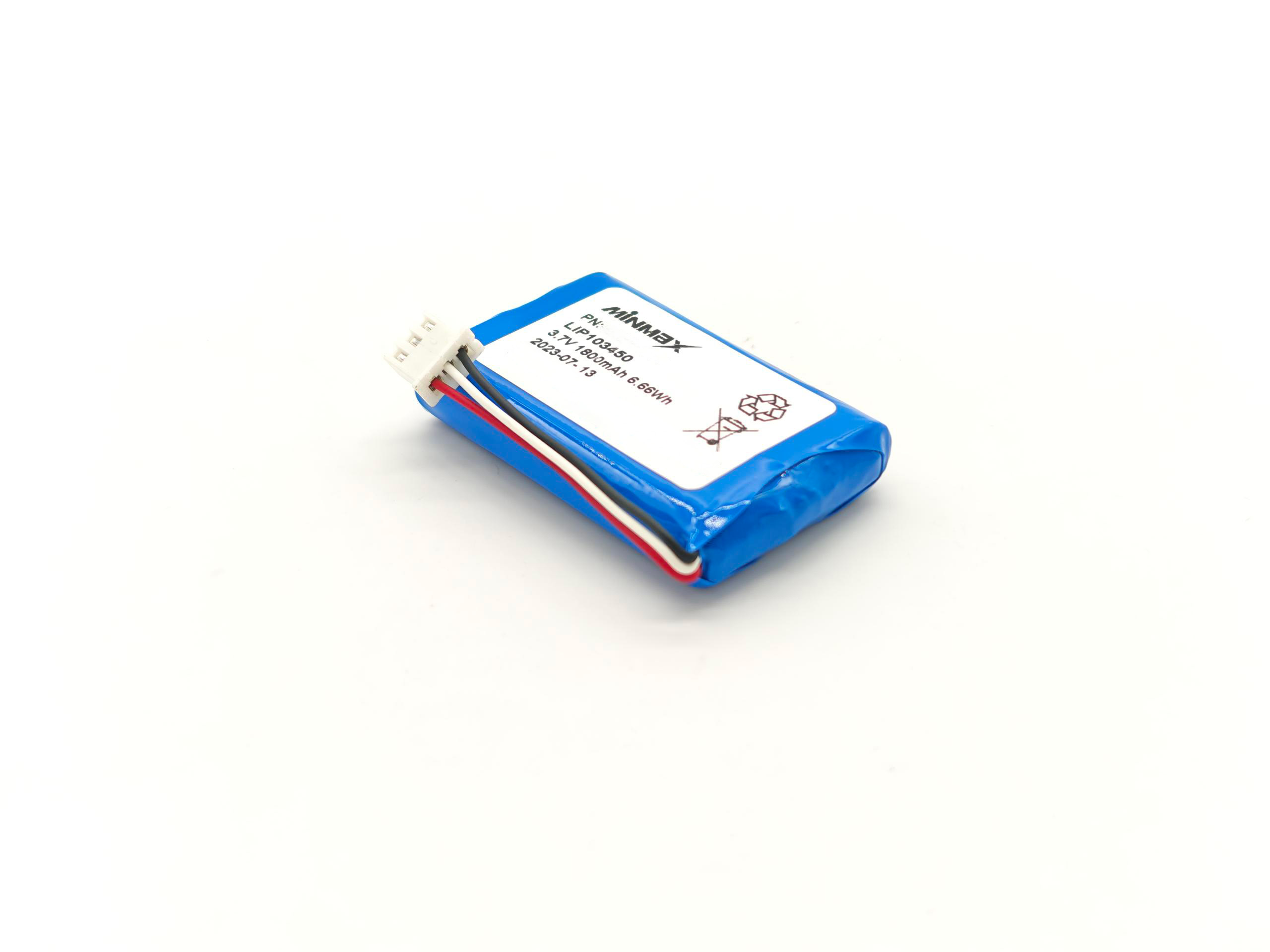

When device thickness is the design constraint, this 10mm-slim LIP103450 polymer battery pack delivers 1800mAh (6.66Wh) without compromise. The single-cell 1S1P configuration keeps the bill of materials simple while the generous 34×50mm footprint maximizes active material area for superior energy density. Integrated PCM provides turn-key protection — just connect to your charging circuit and power management IC.
Technical Specifications (Schema.org Structured Data Ready)
Parameter | Specification |
Nominal Voltage | 3.7V DC |
Rated Capacity | 1800mAh / 6.66Wh |
Chemistry | Li-Polymer (Soft Pouch) |
Configuration | 1S1P |
Cell Model | LIP103450 |
Cell Dimensions | ~10mm × 34mm × 50mm |
Charge Voltage | 4.2V ±0.05V (CC/CV) |
Discharge Cut-off | 3.0V |
Standard Charge | 0.5C (900mA) |
Max Discharge Current | 1C (1800mA) |
Protection | Overcharge / Over-discharge / Overcurrent / Short circuit |
Cycle Life | ≥500 cycles |
Packaging | PVC shrink wrap + PCM |
Output | Lead wires |
Certifications | UN38.3 / MSDS / CE / RoHS |
