Product Description

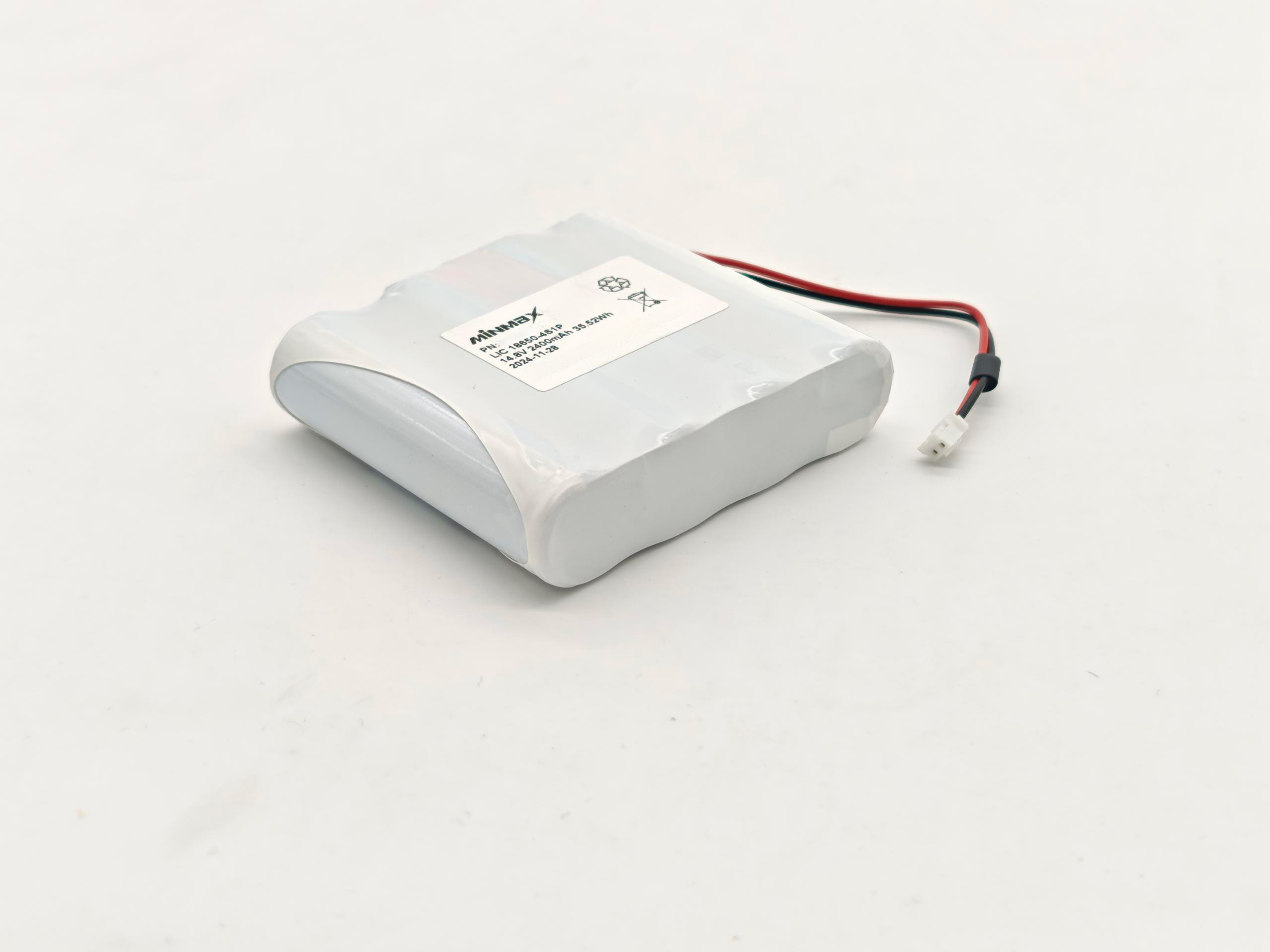

Engineered for demanding portable applications, this 14.8V 18650 lithium-ion battery pack delivers 2400mAh (35.5Wh) of dependable power in a compact 4S1P configuration. Each pack is assembled with Grade-A 18650 cylindrical cells featuring low internal resistance and matched capacity for superior cycle consistency. The integrated PCM (Protection Circuit Module) provides comprehensive safeguards against overcharge, over-discharge, overcurrent, and short circuit, while the JST-XH balance charging connector enables cell-level voltage equalization for extended service life.
Technical Specifications
Parameter | Specification |
Nominal Voltage | 14.8V DC |
Rated Capacity | 2400mAh / 35.5Wh |
Chemistry | Li-ion Cylindrical (18650) |
Configuration | 4S1P (4 cells in series) |
Cell Model | LIC18650 |
Charge Voltage | 16.8V ±0.05V (CC/CV) |
Discharge Cut-off | 12.0V |
Standard Charge | 0.5C (1200mA) |
Max Continuous Discharge | 2C (4800mA) |
Cycle Life | ≥500 cycles |
Protection | Overcharge / Over-discharge / Overcurrent / Short circuit / Temperature |
Dimensions | Custom — blue PVC shrink wrap packaging |
Connector | Main leads + JST-XH balance charge port |
Weight | ~200g |
Certifications | UN38.3 / MSDS / CE / RoHS |
