Product Description

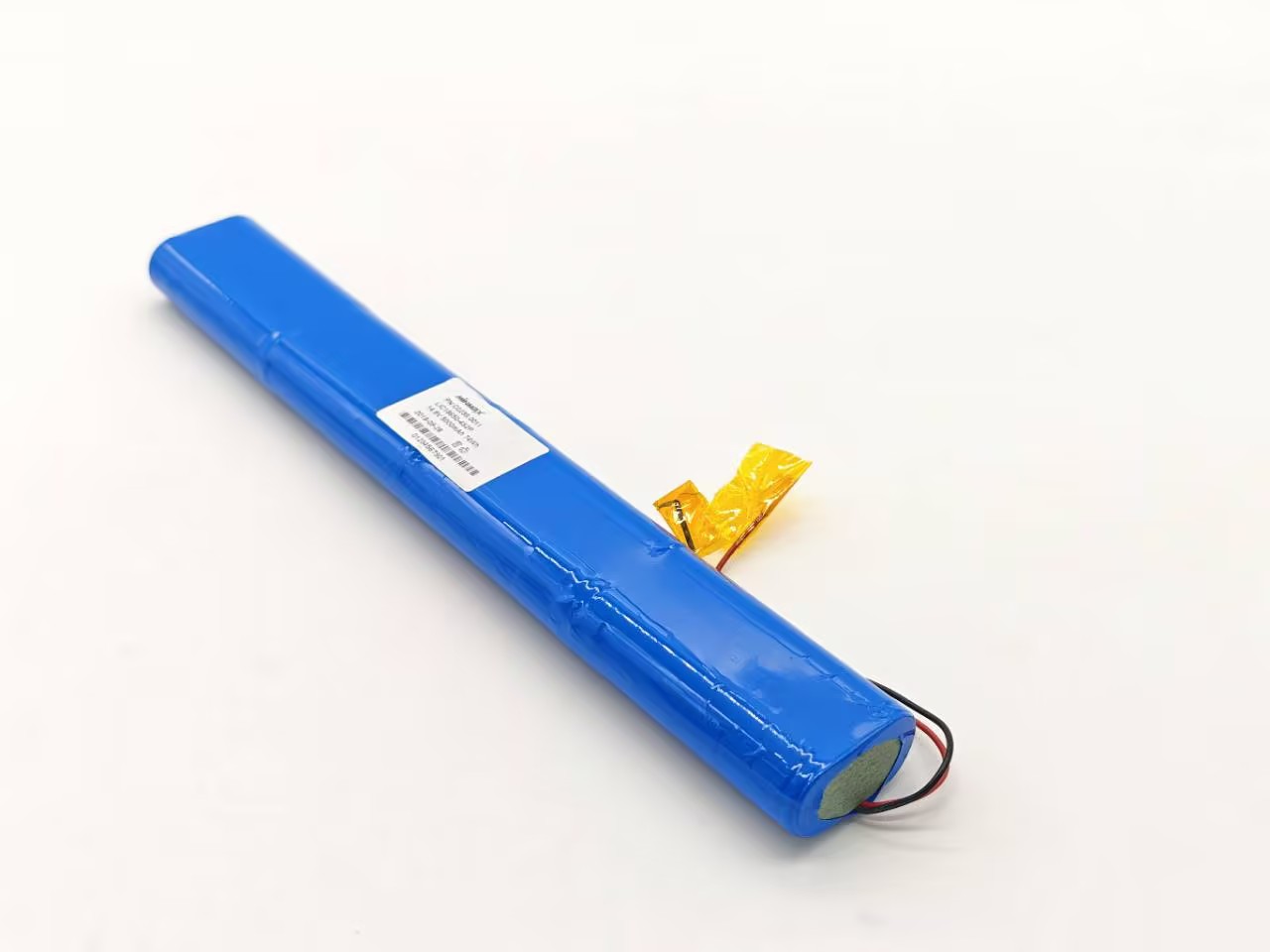

Built for professional-grade equipment that demands sustained high-voltage power, this 14.8V pack doubles down on capacity with a 4S2P architecture — 8 matched 18650 cells delivering 5000mAh (74Wh). The dual-parallel design not only doubles runtime vs. 4S1P equivalents but also halves effective internal resistance, enabling cleaner voltage delivery under pulse loads common in medical aesthetic devices, IPL systems, and portable clinical instruments. An intelligent BMS with per-cell-group monitoring ensures all 8 cells age gracefully together.
Technical Specifications
Parameter | Specification |
Nominal Voltage | 14.8V DC |
Rated Capacity | 5000mAh / 74Wh |
Chemistry | Li-ion Cylindrical (18650) |
Configuration | 4S2P (8 cells total) |
Cell Model | LIC18650 |
Charge Voltage | 16.8V ±0.05V (CC/CV) |
Discharge Cut-off | 12.0V |
Standard Charge | 0.5C (2500mA) |
Max Continuous Discharge | 2C (10,000mA) |
Protection | Overcharge / Over-discharge / Overcurrent / Short circuit / Temperature / Cell balancing |
Cycle Life | ≥500 cycles |
Packaging | Blue PVC shrink wrap + BMS |
Connector | Main power leads + balance charge port |
Weight | ~380g |
Certifications | UN38.3 / MSDS / CE / RoHS |
